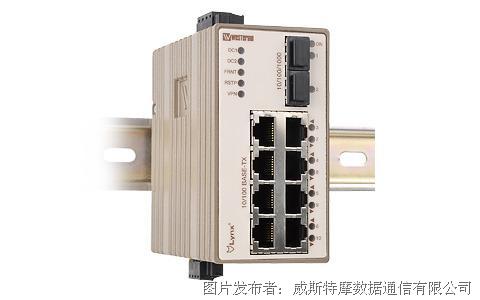

Westermo L210-F2G 网管型以太网交换机

工控网首页

产品选型

威斯特摩数据通信有限公司

2015/5/28 13:46:17

产品简介：

带路由功能的网管型以太网交换机

产品分类：

工业以太网工业交换机物联网网络层以太网交换机接入传输交换产品

品牌：

威斯特蒙

产品介绍

产品描述
Status	Active
Article number	3643-0105
Ports	8 x RJ-45, 10 Mbit/s, 100 Mbit/s, Ethernet TX. 2 x Ethernet SFP 100 Mbit/s or 1000 Mbit/s pluggable connections (FX or TX) transceivers supported. 1 x Digital I/O. 1 x 2.5 mm jack, console.
Description	Managed Ethernet Switch with Routing Functionality
Warranty period	5 Years
认证
Marine	DNV Standard for Certification no. 2.4
EMC (Electromagnetic Compatibility)
EN 61000-6-1	Immunity residential environments
EN 61000-6-2	Immunity industrial environments
EN 61000-6-4	Emission industrial environments
EN 55022 +A1	Emission IT equipment
EN 55024	Immunity IT equipment
FCC part 15	Class A
EN 50121-4	Railway signalling and telecommunications apparatus
IEC 62236-4	Railway signalling and telecommunications apparatus
EMC specifications
EN 61000-4-2, ESD	Contact: ±6 kV Air: ±8 kV
EN 61000-4-4, fast transients	Power port, ±2 kV Signal ports, ±2 kV Earth port, ±1 kV
EN 61000-4-5, surge	Power port L-E: ±0.5 kV, 12 Ω, 9 μF L-L: ±0.5 kV, 2 Ω, 18 μF L-E: ±2 kV, 42 Ω, 0.5 μF L-L: ±2 kV, 42 Ω, 0.5 μF L-E: ±2 kV, 12 Ω, 9 μF L-L: ±1 kV, 12 Ω, 9 μF Signal ports L-E: ±1 kV, 2 Ω L-E: ±2 kV, 42Ω, 0.5 μF
EN 61000-4-8, power frequency magnetic field	300 A/m; 0, 16.7, 50 Hz
EN 61000-4-9, pulsed magnetic field	300 A/m
EN 61000-4-3, radiated RF immunity	10 V/m @ (80 – 800) MHz 20 V/m @ (800 – 1000) MHz 10 V/m @ (1400 – 2100) MHz 5 V/m @ (2100 – 2500) MHz 1 V/m @ (2500 – 2700) MHz 1 kHz sine, 80% AM
EN 61000-4-6, conducted RF immunity	Power port, 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz Signal ports, 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz Earth port, 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz
EN 55022, radiated RF emission	Class A
FCC part 15, radiated RF emission	Class A
EN 55022, conducted emission	Power port, Class B Signal ports, Class B
安全
Safety	UL/IEC/EN 60950-1, IT equipment
EN 60950-1, dielectric strength	Power port to all other ports, 1.5 kVrms, 50 Hz, 1 min Signal ports to all other ports, 1.5 kVrms, 50 Hz, 1 min
可靠性
MTBF, operating	630 000 h (MIL-HDBK-217F (Gb) 25°C)
环境
Temperature, operating	–40 to +70°C (–40 to +158°F)
Temperature, storage	–50 to +85°C (–58 to +185°F)
Humidity, operating	5 to 95 % relative humidity
Humidity, storage	5 to 95 % relative humidity
其他
Dimensions (W x H x D)	52.5 x 100 x 101 mm (With connectors 52.5 x 119 x 101 mm)
Weight	0,7 kg
Degree of protection	IP 40
Cooling	Convection
Mounting	DIN-rail
机械性
IEC-60068-2-27, shock	30 g, 11 ms 100 g, 6 ms
IEC 60068-2-6, vibration	3 – 13.2 Hz: 1mm 13.2 – 100 Hz: 0.7 g 5.5 – 30 Hz: 1.5 g 30 – 50 Hz: 0.42 mm 50 – 500 Hz: 4.2 g
IEC 60068-2-27, bump	10 g, 11 ms
电源口规格
Operating voltage	Rated: 24 to 48 VDC Operating: 19 to 60 VDC
Rated current	240 mA @ 24 VDC 120 mA @ 48 VDC
Rated frequency	DC
Inrush current	22.7·10-3 A2s @ 48 VDC
Startup current	2 x Rated current
Polarity	Reverse polarity protected
Redundant power input	Yes
Isolation to	All other
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm2 (AWG 24 – 12)
Shielded cable	Not required
10/100BaseTX规格
Electrical specification	IEEE std 802.3. 2005 Edition
Data rate	10 Mbit/s, 100 Mbit/s, manual or auto
Duplex	Full or half, manual or auto
Circuit type	TNV-1
Transmission range	Up to 150 m with CAT5e cable or better
Isolation to	All other
Connection	RJ-45, auto MDI/MDI-X
Shielded cable	Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.
Conductive housing	Yes
Number of ports	8
100/1000SFP规格
Optical/Electrical specification	IEEE std 802.3. 2005 Edition
Data rate	100 Mbit/s or 1000 Mbit/s transceivers supported
Duplex	Full or Auto, depending on transceiver
Transmission range	Depending on tranceiver
Connection	SFP slot holding fibre transceiver or copper transceiver
Number of ports	1 or 2
I/O relay output
Maximum voltage / current	60 VDC / 80 mA
Connect resistance	Max 30 Ω
Isolation to	All other
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm2 (AWG 24 – 12)
I/O Digital output
Maximum volt / current	60 VDC / 2 mA
Voltage_levels	Logic one: >12V Logic zero: <1V
Isolation to	All other
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm2 (AWG 24 – 12)
Interface specifications, console
Electrical specification	TTL-level
Data rate	115.2 kbit/s
Data format	8 data bits, no parity, 1 stop bit, no flow control
Circuit type	SELV
Connection	2.5 mm jack, use only Westermo cable 1211-2027
Electrical specification	IEEE std 802.3. 2005 Edition
